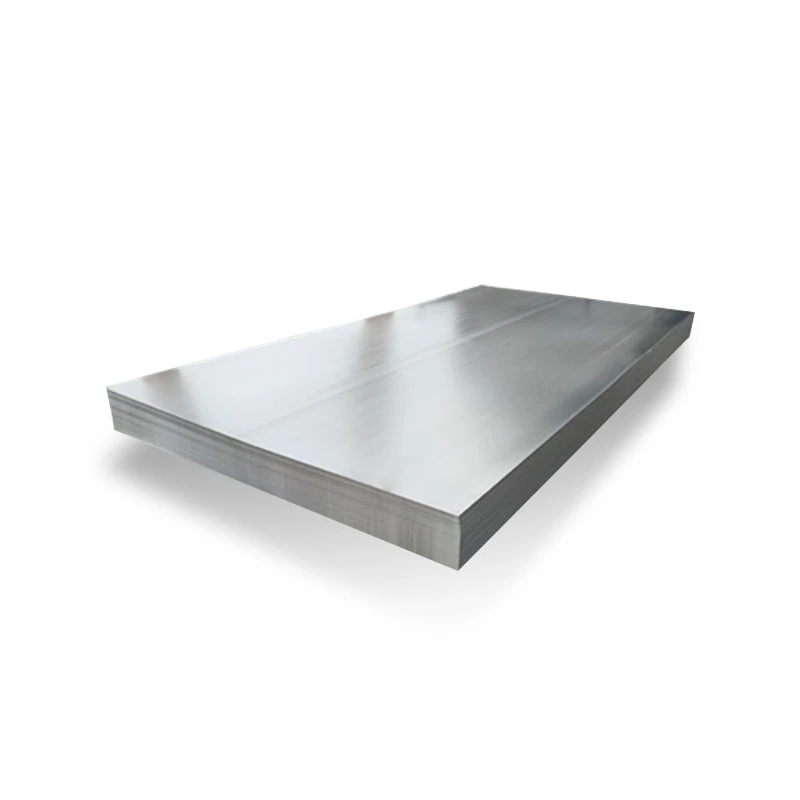

A588 Alloy Structural Steel Plate

A588 alloy structural steel plate is a kind of weather-resistant steel plate, and its material standard is ASTM A588/A588M. It is a type of low-alloy high-strength structural steel and is mainly used for structural components in outdoor exposure environments, such as bridges, large containers, chimneys, etc.

Tel:+8618363510107

WhatsApp:+8618363510107

Email:Ethan@taihang-metal.com

Product Description

A588 Alloy Structural Steel Plate

A588 alloy structural steel plate not only has high weather resistance to resist atmospheric corrosion, but also has good mechanical properties. As a matter of fact, this steel plate can form a protective layer on the surface of the metal substrate through alloying of Cu, P, Cr, Ni, etc., thus having high atmospheric corrosion resistance. The steel plate has high tensile strength and yield strength at room temperature, and has good elongation properties. The steel plates are widely used in structural engineering fields such as bridges, high-rise buildings, towers, and transmission towers. Its weather resistance can provide long-term structural stability and strong resistance to atmospheric corrosion, thus extending the service life of the structure.

Product Parameters
Product Name	A588 Alloy Structural Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition
A588	C	Mn	P	S	Si	Ni	Cr	Cu	V
Grade A	0.19 %	0.80-1.25 %	0.03 %	0.03 %	0.30-0.65 %	0.40 %	0.40-0.65 %	0.25-0.40 %	0.02-0.10 %
Grade B	0.20 %	0.75-1.35 %	0.03 %	0.03 %	0.15-0.50 %	0.50 %	0.40-0.70 %	0.20-0.40 %	0.01-0.10 %
Grade C	0.17 %	0.50-1.20 %	0.03 %	0.03 %	0.25-0.50 %	0.40 %	0.40-0.70 %	0.30-0.50 %	-

Mechanical Properties
Thickness	Yield Strength (Ksi)	Tensile StrengthMin (ksi)	Min. 2" Elongation %	Min. 8" Elongation %
Below 4 mm	50	70	21	18
4in. - 5in.	46	67	21	-
5in. - 8in.	42	63	21	-

Scope of Application

ASTM A588 alloy steel has many applications: outdoor sculpture, crane, bridge, rail car, transmission tower, highway pole and shipbuilding.

Equivalent Material
American Standard ASTM A588	ASME SA588	German Standard DIN, WNr	United Kingdom BS	Italy UNI	European Standard EN
A588 Grade A	SA588 Grade A	WTSt 52-3	WR 50 C	Fe510 D2K1	S355J2 G1W
